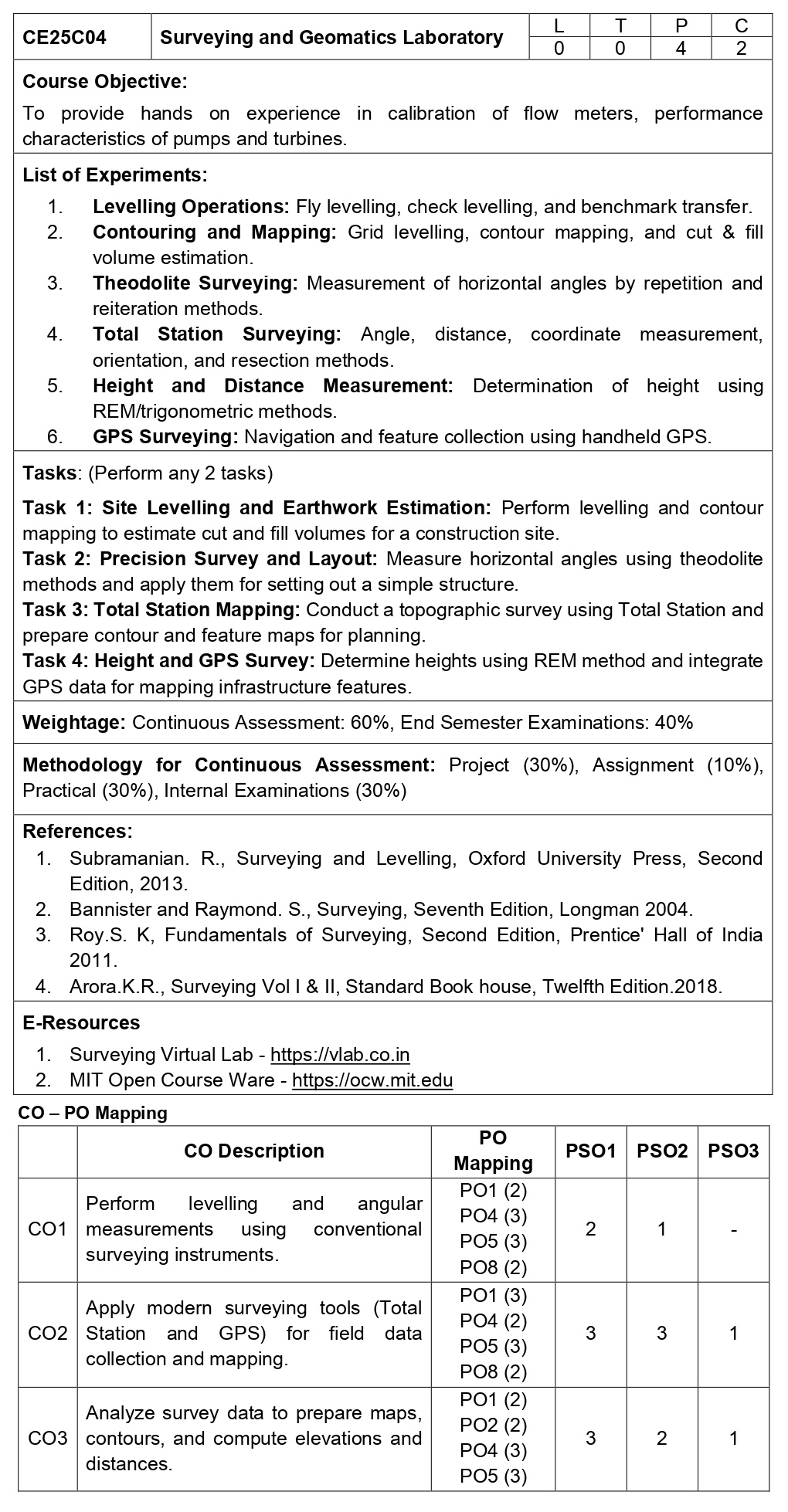

Surveying and Geomatics Laboratory - CE25C04



CE25C04

Surveying and Geomatics Laboratory



Course Objective:

To provide hands on experience in calibration of flow meters, performance characteristics of pumps and turbines.



List of Experiments:

1.Levelling Operations: Fly levelling, check levelling, and benchmark transfer.

2.Contouring and Mapping: Grid levelling, contour mapping, and cut & fill volume estimation.

3.Theodolite Surveying: Measurement of horizontal angles by repetition and reiteration methods.

4.Total Station Surveying: Angle, distance, coordinate measurement, orientation, and resection methods.

5.Height and Distance Measurement: Determination of height using REM/trigonometric methods.

6.GPS Surveying: Navigation and feature collection using handheld GPS.



Tasks: (Perform any 2 tasks)

Task 1: Site Levelling and Earthwork Estimation: Perform levelling and contour mapping to estimate cut and fill volumes for a construction site.

Task 2: Precision Survey and Layout: Measure horizontal angles using theodolite methods and apply them for setting out a simple structure.

Task 3: Total Station Mapping: Conduct a topographic survey using Total Station and prepare contour and feature maps for planning.

Task 4: Height and GPS Survey: Determine heights using REM method and integrate GPS data for mapping infrastructure features.

Weightage: Continuous Assessment: 60%, End Semester Examinations: 40%

Methodology for Continuous Assessment: Project (30%), Assignment (10%), Practical (30%), Internal Examinations (30%)



References:

1.Subramanian. R., Surveying and Levelling, Oxford University Press, Second Edition, 2013.

2.Bannister and Raymond. S., Surveying, Seventh Edition, Longman 2004.

3.Roy.S. K, Fundamentals of Surveying, Second Edition, Prentice' Hall of India 2011.

4.Arora.K.R., Surveying Vol I & II, Standard Book house, Twelfth Edition.2018.
