Digital System Design Laboratory - EC25C08



EC25C08

Digital System Design Laboratory



Course Objective:

To develop hands-on skills in designing, implementing, and verifying combinational and sequential digital circuits using HDL and hardware platforms for real-world applications.

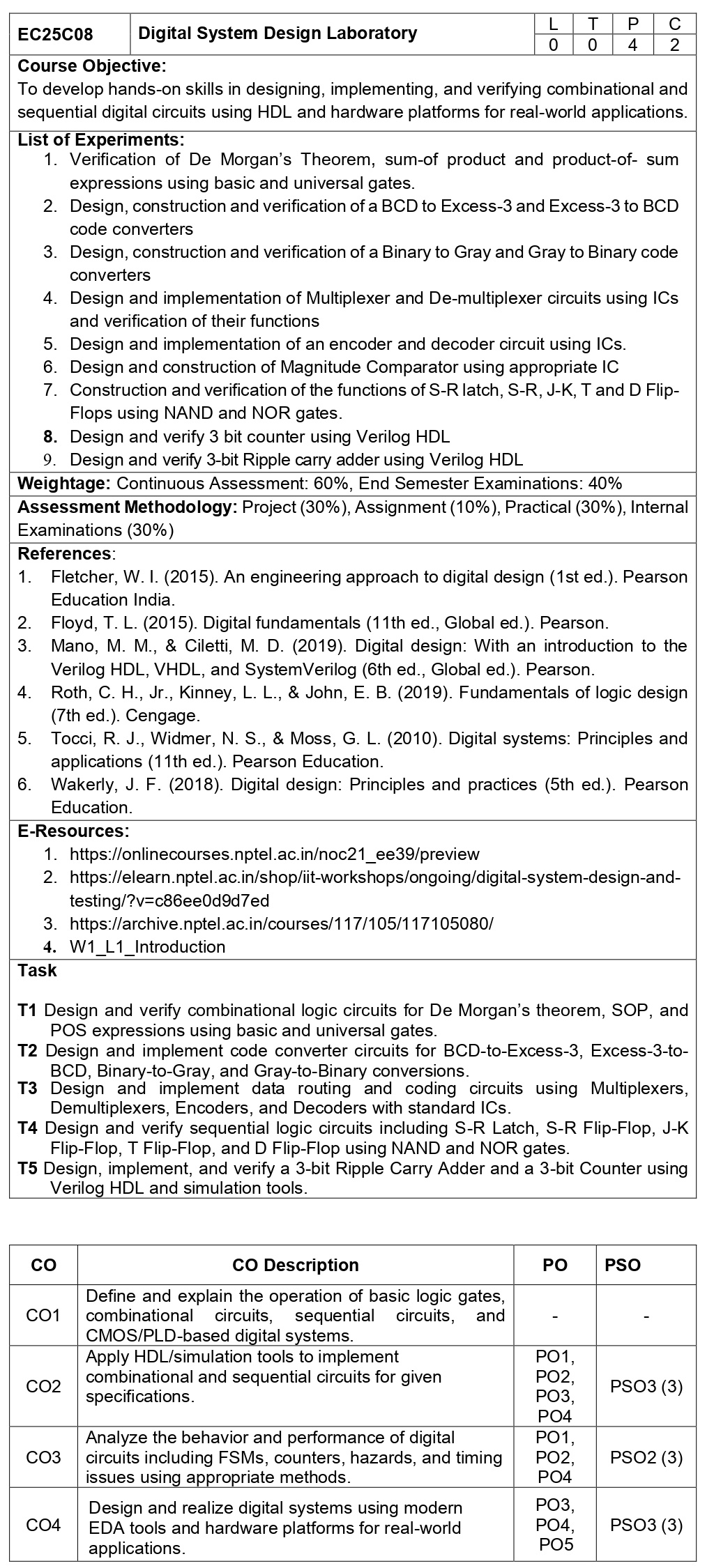

List of Experiments:

1.Verification of De Morgan’s Theorem, sum-of product and product-of- sum expressions using basic and universal gates.

2. Design, construction and verification of a BCD to Excess-3 and Excess-3 to BCD code converters

3. Design, construction and verification of a Binary to Gray and Gray to Binary code converters

4. Design and implementation of Multiplexer and De-multiplexer circuits using ICs and verification of their functions

5. Design and implementation of an encoder and decoder circuit using ICs.

6. Design and construction of Magnitude Comparator using appropriate IC

7. Construction and verification of the functions of S-R latch, S-R, J-K, T and D Flip-Flops

using NAND and NOR gates.

8. Design and verify 3 bit counter using Verilog HDL

9. Design and verify 3-bit Ripple carry adder using Verilog HDL



Weightage: Continuous Assessment: 60%, End Semester Examinations: 40%

Assessment Methodology: Project (30%), Assignment (10%), Practical (30%), Internal

Examinations (30%)



References:

1. Fletcher, W. I. (2015). An engineering approach to digital design (1st ed.). Pearson Education India.

2. Floyd, T. L. (2015). Digital fundamentals (11th ed., Global ed.). Pearson.

3. Mano, M. M., & Ciletti, M. D. (2019). Digital design: With an introduction to the Verilog HDL, VHDL, and SystemVerilog (6th ed., Global ed.). Pearson.

4. Roth, C. H., Jr., Kinney, L. L., & John, E. B. (2019). Fundamentals of logic design (7th ed.). Cengage.

5. Tocci, R. J., Widmer, N. S., & Moss, G. L. (2010). Digital systems: Principles and applications (11th ed.). Pearson Education.

6. Wakerly, J. F. (2018). Digital design: Principles and practices (5th ed.). Pearson Education.
