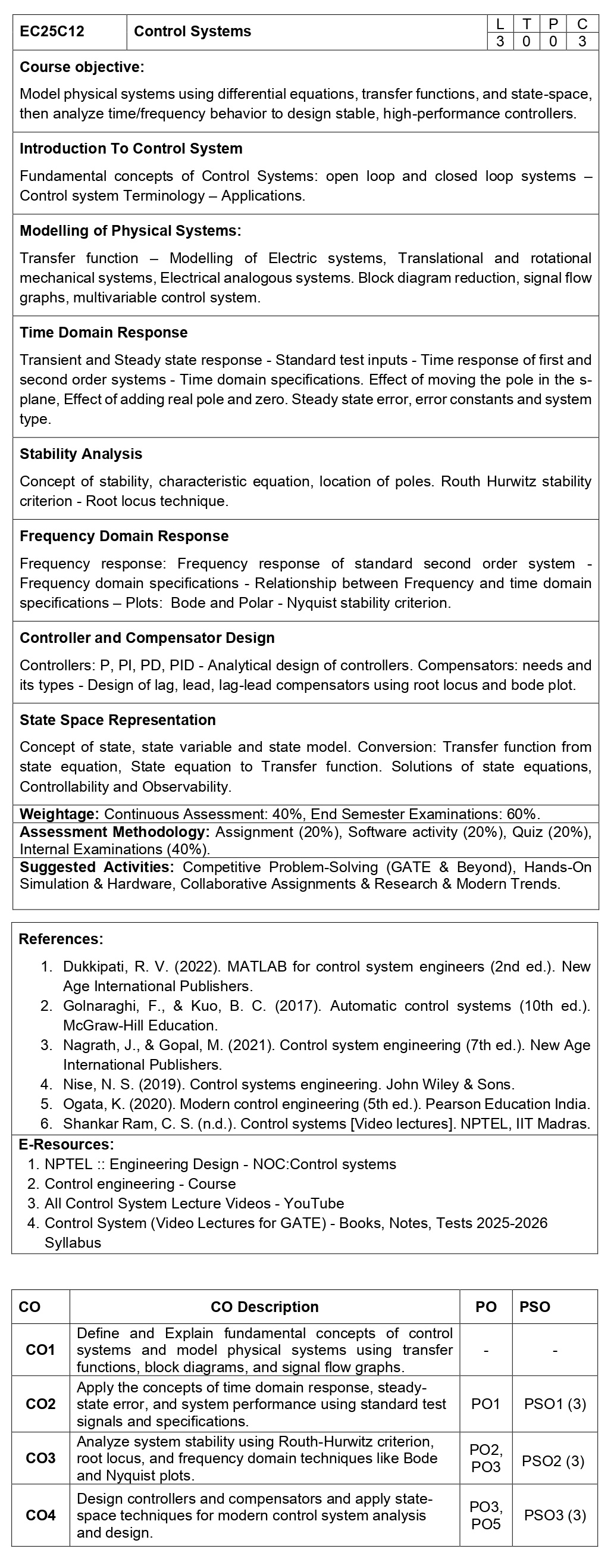

EC25C12:
Control
Systems
Course
objective:
Model
physical systems using differential equations, transfer functions, and
state-space, then analyze time/frequency behavior to design stable,
high-performance controllers.
Introduction
To Control System
Fundamental
concepts of Control Systems: open loop and closed loop systems – Control system
Terminology – Applications.
Modelling
of Physical Systems:
Transfer
function – Modelling of Electric systems, Translational and rotational
mechanical systems, Electrical analogous systems. Block diagram reduction,
signal flow graphs, multivariable control system.
Time
Domain Response
Transient
and Steady state response - Standard test inputs - Time response of first and
second order systems - Time domain specifications. Effect of moving the pole in
the s-plane, Effect of adding real pole and zero. Steady state error, error
constants and system type.
Stability
Analysis
Concept
of stability, characteristic equation, location of poles. Routh Hurwitz
stability criterion - Root locus technique.
Frequency
Domain Response
Frequency
response: Frequency response of standard second order system - Frequency domain
specifications - Relationship between Frequency and time domain specifications
– Plots: Bode and Polar - Nyquist stability criterion.
Controller
and Compensator Design
Controllers:
P, PI, PD, PID - Analytical design of controllers. Compensators: needs and its
types - Design of lag, lead, lag-lead compensators using root locus and bode
plot.
State
Space Representation
Concept
of state, state variable and state model. Conversion: Transfer function from
state equation, State equation to Transfer function. Solutions of state
equations, Controllability and Observability.
Weightage:
Continuous Assessment: 40%, End Semester Examinations: 60%.
Assessment Methodology:
Assignment (20%), Software activity (20%), Quiz (20%),
Internal
Examinations (40%).
Suggested Activities:
Competitive Problem-Solving (GATE & Beyond), Hands-On Simulation &
Hardware, Collaborative Assignments & Research & Modern Trends.
References:
1.
Dukkipati, R. V. (2022). MATLAB for control system engineers (2nd ed.). New Age
International Publishers.
2.
Golnaraghi, F., & Kuo, B. C. (2017). Automatic control systems (10th ed.).
McGraw-Hill Education.
3.
Nagrath, J., & Gopal, M. (2021). Control system engineering (7th ed.). New
Age International Publishers.
4.
Nise, N. S. (2019). Control systems engineering. John Wiley & Sons.
5.
Ogata, K. (2020). Modern control engineering (5th ed.). Pearson Education
India.
6.
Shankar Ram, C. S. (n.d.). Control systems [Video lectures]. NPTEL, IIT Madras.
