Fluid Mechanics and Machinery Laboratory - CE25C07



CE25C07:

Fluid Mechanics and Machinery Laboratory

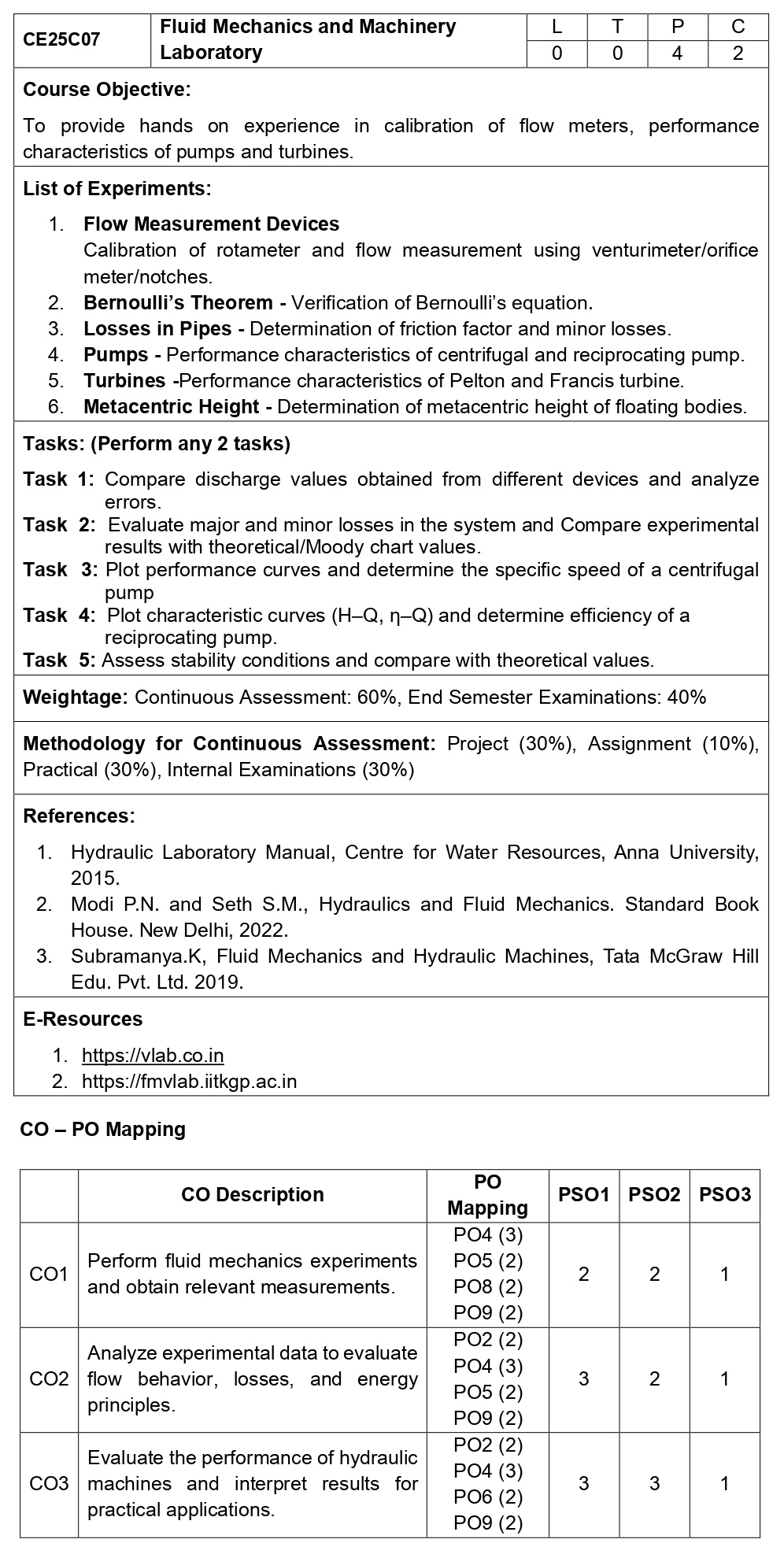

Course Objective:

To provide hands on experience in calibration of flow meters, performance characteristics of pumps and turbines.



List of Experiments:

1. Flow Measurement Devices

Calibration of rotameter and flow measurement using venturimeter/orifice meter/notches.

2. Bernoulli’s Theorem - Verification of Bernoulli’s equation.

3. Losses in Pipes - Determination of friction factor and minor losses.

4. Pumps - Performance characteristics of centrifugal and reciprocating pump.

5. Turbines -Performance characteristics of Pelton and Francis turbine.

6. Metacentric Height - Determination of metacentric height of floating bodies.



Tasks: (Perform any 2 tasks)

Task 1: Compare discharge values obtained from different devices and analyze errors.

Task 2: Evaluate major and minor losses in the system and Compare experimental results with theoretical/Moody chart values.

Task 3: Plot performance curves and determine the specific speed of a centrifugal pump

Task 4: Plot characteristic curves (H–Q, η–Q) and determine efficiency of a reciprocating pump.

Task 5: Assess stability conditions and compare with theoretical values.



Weightage: Continuous Assessment: 60%, End Semester Examinations: 40%

Methodology for Continuous Assessment: Project (30%), Assignment (10%), Practical (30%), Internal Examinations (30%)



References:

1. Hydraulic Laboratory Manual, Centre for Water Resources, Anna University, 2015.

2. Modi P.N. and Seth S.M., Hydraulics and Fluid Mechanics. Standard Book House. New Delhi, 2022.

3. Subramanya.K, Fluid Mechanics and Hydraulic Machines, Tata McGraw Hill Edu. Pvt. Ltd. 2019.
